Product List
 |
Product Name:

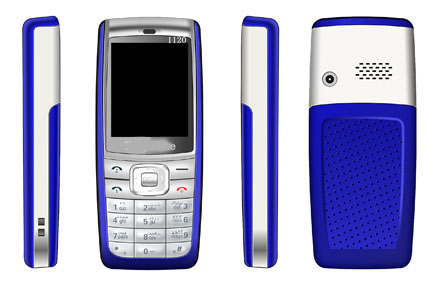

Dual sim ETOWAY 1120
Model:
1120
Product Details:
- Brand name: etoway
Model number: 1120
FOB price: FCA Hongkong
-
-
| SECTION A. |
GENERAL SPECIFICATION |
| Motherboard |
Spreadtrum 6610L |
| Operating Frequency |
GSM 850/900/1800/1900MHz |
| Dimensions |
103 x 44.2x 14mm |
| Phone type |
Bar phone, dual sim dual standby |
| Display |
1.8inch TFT screen |
| Colour |
black,red,blue |
| Camera |
0.3 Mega pixels, single camera |
| Multi-media |
MP3 / MP4 / FM / Bluetooth/GPRS |
| Speaker |
louder speaker 26/26 |
| Earphone port |
10pin mini USB |
| Memory Functions |
External Memory T-FLASH upto 8GB |
| Talking time |
about 100-160 minutes |
| Standby time |
about 30-48 hours |
| Battery |
BL-4C, 500Mah capacity |
| USB port |
12pins USB，DC Jack |
| Flash torch |
YES |
| Vibration |
No |
| Flash memory |
32MB+16MB |
| Language |
Language: English, Spanish |
| SECTION B. |
ELECTRICAL SPECIFICATIONS |
| 1 General |
|
| |
TRANSMIT FREQUENCY |
| |
824 MHz ~ 849 MHz/880 MHz ~ 915 MHz |
| |
1710MHz ~ 1785MHz / 1850MHz ~ 1910MHz |
| |
RECEIVE FREQUENCY |
| |
869 MHz ~ 894 MHz / 925 MHz ~ 960 MHz |
| |
1805MHz ~ 1880MHz / 1930 MHz ~ 1990MHz |
| |
The Number of Time Slot 8 |
| |
The Number of Channels 124/174/375/299 |
| |
Channel Spacing 200 kHz |
| |
Power Supply Rechargeable Li-Ion Battery 3.7V/680mAh |
| |
Operating Temperature -10℃ ～ +55℃ |
| 2 Transmitter |
|
| |
OUTPUT POWER |
| |
Maximum Output Power 33±2/33±2 / 30±2 / 30±2 dBm |
| |
Minimum Output Power 5±5 / 0±5 dBm |
| |
Frequency Error ±90Hz/±90Hz/±180Hz/±180Hz |
| |
Phase Error RMS < 5°, PEAK < 20° |
| |
SAR INFORMATION |
| |
SAR Head: 0,70 W/Kg |
| |
SAR Body: 0,87 W/Kg |
| |
FRECUENCY STABILITY |
| |
850Mhz: ± 0,00025 ppm (-10 ºC a +55 ºC) |
| |
900Mhz: ± 0,00025 ppm (-10 ºC a +55 ºC) |
| |
1850Mhz: ± 0,00025ppm (-10 ºC a +55 ºC) |
| |
1900Mhz: ± 0,00025 ppm (-10 ºC a +55 ºC)
|
